Full-digital ultrasound guided gynecological hysteroscope surgical instrument

  • FOB Price:US $2000-10000 / Vial(s)
  • Min.Order:1 Vial(s)
  • Production Capacity:1000
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A
  • Favorite
Tianjin guyufan Biotechnology Co., Ltd

Business Type:Trader

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:Medical
  • Certification:CE
  • Net Weight:200
  • Dimension:800*1200
  • Packaging Details:1pcs/ctn
  • Brand Name:gyf
  • Trademark:gyf
  • Place of Origin:china
  • Warranty:1 year
  • Energy source: :electricity
  • Type: :Urology Endoscope System
  • After-sales service: :online technical support
  • Material: :metal, plastic, steel
  • LED lighting:: 1,900,000 lux (80 watts)
  • Camera chip: :CMOS
  • Application::Application: Hysteroscope, Proctoscope
  • Telescope angle: :0°, 12°, 22°, 30°
  • Medical monitor: :15
  • Instrument: :available
  • HD camera resolution: :1080P

Description

use:

uterus

Endometrial leiomyoma endometrial stromal sarcoma

Endometrial polyps

Endometriotic uterus

Dysfunctional uterus

Myoma uterus

Mucosal mediastinum

Birth control

Infertility (tubal dredging)

Features:

Endoscope HD camera 1080P with coupler and HD camera:

Effective pixels: 1920 * 1080

Horizontal resolution: 1080P (1200 lines)

Video output: HDMI * 4, SDI * 1, BNC * 1, VGA * 1;

SNR (signal to noise ratio): ≥50dB;

Languages: Spanish, French, Russian, Italian, English, etc.;

Gross weight: 9.98kg

Packing size: 570 * 510 * 320mm

LED cold light source:

OSRAM bulb

Power: 1,200,000 Lux (80watt)

Color temperature: >= 6500k

Image temperature: <= 80℃

Digital display fan


Display mode


With B, B+B, 4B, B+M, M type


Abdominal probe


1. The maximum detection depth is 250mm.


2. Longitudinal (axial) resolution: ≤2mm (depth ≤80mm),


≤3mm (80mm<depth≤130mm);


3. Horizontal (lateral) resolution: ≤3mm (depth ≤80mm),


 ≤4mm (80mm<depth≤130mm;


4. Geometric position accuracy error: horizontal: ≤15% longitudinal ≤10%;


5. Scanning angle: 35°-60° adjustable.


Special probe for vagina


1. Detection depth: ≥40mm;


2. Longitudinal (axial) resolution: ≤1mm (depth ≤40mm);


3. Transverse (lateral) resolution: ≤2mm (depth ≤30mm);


4. Geometric position accuracy error: horizontal: ≤10% longitudinal ≤5%;


5. Scanning angle: 152°


Electric suction device


1. The negative pressure value for surgery is automatically controlled within the set range.


2. Negative pressure adjustment range: 0.02MPa—0.09 Mpa


3. Instantaneous pumping rate ≥20L/min.


4 Working noise: ≤60dB.


Measurement function


Routine measurement (distance, circumference, area, volume, ratio); cardiac measurement (left ventricle, aortic valve, mitral valve, pulmonary valve, tricuspid valve, heart rate); obstetric measurement (double parietal diameter, femoral length, abdominal Circumference, head circumference, head and hip length, gestational sac, fetal weight, gestational age, expected date of delivery), the report is automatically generated


Probe interface


≥2, the host has a direct activation probe interface


monitor


15 inch high resolution LCD monitor


Posture mark


40 kinds,


Dynamic Range


100-130dB, with parameter presets, dynamic range, edge enhancement, frame correlation, and gamma correction can be set by yourself.


Gain control


8 segments TGC, total gain is adjustable


Imaging technology


THI tissue harmonic imaging technology


★Channel


32 AD sampling channels with digital beamformer


Image magnification


16 depth adjustable


Image Processing


Image smoothing/sharpening, tissue harmonics, gamma correction, edge enhancement, histogram statistics and other image processing technologies


★Image adjustment


Adjustable up and down, left and right, black and white, focus number, focus position, focus distance, line density, frame correlation, M speed, sound power, etc.


Movie playback


≥500 frames, can be played back manually or automatically


Probe interface


Dual interfaces can activate in real time and automatically identify the probe


Scope of application


It is suitable for gynecological operation of artificial abortion, removal or placement of intrauterine device under real-time monitoring of ultrasound.


External port


High-speed USB2.0 (device), RS-232 port,


VIDEO OUT video output


The system has diagnostic report function, annotation function, puncture guidance function, etc.


Fully digital beamforming technology, depth visible and adjustable


It adopts the integrated design of suction device and main unit (also can be separated).


Ultrasound special vaginal dilator can be used with special probe.


If the equipment needs to be repaired and replaced within 5 years, its materials must guarantee the price of the materials at the time of purchase.

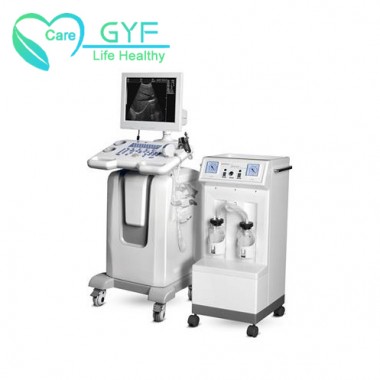

Basic configuration: a host of a fully digital ultrasound-guided gynecological uterine cavity surgical instrument, a special probe, an abdominal probe matched with it, 10 sets of special card-connected double-wing vaginal dilators, and a 15-inch high-resolution LCD monitor , 1 set of negative pressure aspirator.


After the equipment is installed, 1 to 2 users will be trained for free until the user can use it.
