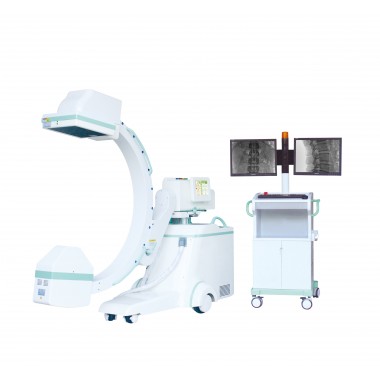

CE/ISO certified medical high frequency mobile C-arm X-ray imaging system machine
Purchase Qty:
1
Unit:
Piece(s)
Fob Unit Price:
US $25000
Payment Terms: L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A
Tianjin guyufan Biotechnology Co., Ltd
Business Type: Trader
Country/Region:
HOT Rank
8/10
Product Information
Model: C-arm X-ray Certification: CE Net Weight: 140kg Dimension: 1500*750*1480 Packaging Details: carton Brand Name: gyf Trademark: gyf Place of Origin: china Warranty: 1 year High frequency generator: 110kV, 3.5kW, 40kHz Perspective mode Perspective mode: 40~110kV 0.5~5mA(Manual and automatic KV) Pulse fluoroscopy: 40~110kv 0,5-5mA Enhanced fluoroscopy: 40~110kV 5~10mA photography: 40~110kV 1~250mAs X-ray tube dual focus fixed anode: 0.6mm / 1.5mm Image intensifier three fields of view: 9, 6, 4.5 Features1: Can rotate 360° Features2: Image system recursive noise reduction Features3: The picture freezes Features4: Multi-frame image storage Features5: Image conversion and rotation Features6: Screen display and image comparison Features7: Mechanical movement specification vertical stroke 0-400mm horizontal stroke: 0~200mm Rotate around the horizontal axis: ±180° C-arm size focal point to image generator distance: 1000mm Arm depth: 650mm Mobile stand: 1 set Imaging system: 750mm * 530mm * 1680mm Standard high-resolution CCD camera: 1 set X-ray generator: 1 set 9" image intensifier: 1 set Digital noise reduction system 14" high resolution: 2 sets
